DIN 86019 Pipes
Large stock of DIN 86019 pipe. Fast delivery according to your order quality requirements.
sales@copperry.com
sales@copperry.com
Large stock of DIN 86019 pipe. Fast delivery according to your order quality requirements.
Material Grades：CuNi10Fe1.6Mn.
Standard：DIN86019.
Size: 8MM to 900MM, ≤ 419mm is seamless pipes. ≥ 457mm is welded pipes.
Wall Thickness：1 mm to 8 mm.
Pipe Length：6m/pcs
Pressure Rating：10bar ，14bar.
Applications: Shipbuilding, offshore oil platforms, navy, heat exchangers.
Our Certificate： CCS, DNV-GL.
COPPERRY is a professional manufacturer of DIN86019 pipes in China. COPPERRY have DIN86019 pipes of all sizes in stock. In order to guarantee the quality of the DIN86019 pipes you buy, the pipes sent out have material certificates.

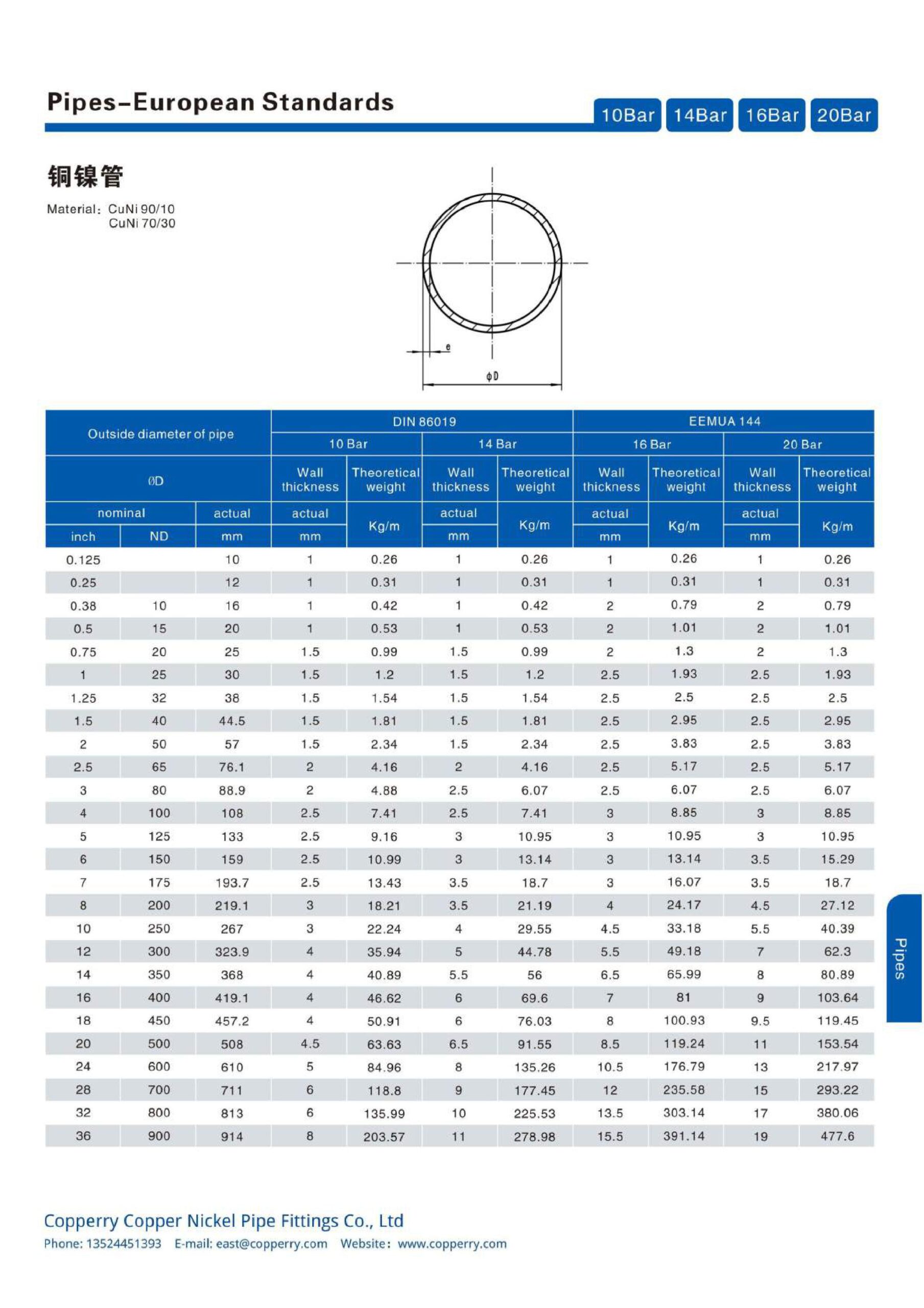

| Outside Diameter of pipe | DIN 86019 | |||||
| 10 bar | 14 bar | |||||
| ØOutside Diameter | Wall | Theoretical | Wall | Theoretical | ||
| Thickness | Weight | Thickness | Weight | |||
| Nominal | Actual | |||||
| inch | DN | mm | mm | Kg/m | mm | Kg/m |
| 1/8 | 10 | 1 | 0.26 | 1 | 0.26 | |
| 1/4 | 12 | 1 | 0.31 | 1 | 0.31 | |
| 3/8 | 10 | 16 | 1 | 0.42 | 1 | 0.42 |
| 1/2 | 15 | 20 | 1 | 0.53 | 1 | 0.53 |
| 3/4 | 20 | 25 | 1.5 | 0.99 | 1.5 | 0.99 |
| 1 | 25 | 30 | 1.5 | 1.2 | 1.5 | 1.2 |
| 11/4 | 32 | 38 | 1.5 | 1.54 | 1.5 | 1.54 |
| 1 1/2 | 40 | 44.5 | 1.5 | 1.81 | 1.5 | 1.81 |
| 2 | 50 | 57 | 1.5 | 2.34 | 1.5 | 2.34 |
| 2 1/2 | 65 | 76.1 | 2 | 4.16 | 2 | 4.16 |
| 3 | 80 | 88.9 | 2 | 4.88 | 2.5 | 6.07 |
| 4 | 100 | 108 | 2.5 | 7.41 | 2.5 | 7.41 |
| 5 | 125 | 133 | 2.5 | 9.16 | 3 | 10.95 |
| 6 | 150 | 159 | 2.5 | 10.99 | 3 | 13.14 |
| 7 | 175 | 193.7 | 2.5 | 13.43 | 3.5 | 18.7 |
| 8 | 200 | 219.1 | 3 | 18.21 | 3.5 | 21.19 |
| 10 | 250 | 267 | 3 | 22.24 | 4 | 29.55 |
| 12 | 300 | 323.9 | 4 | 35.94 | 5 | 44.78 |
| 14 | 350 | 368 | 4 | 40.89 | 5.5 | 56 |
| 16 | 400 | 419.1 | 4 | 46.62 | 6 | 69.6 |
| 18 | 450 | 457.2 | 4 | 50.91 | 6 | 76.03 |
| 20 | 500 | 508 | 4.5 | 63.63 | 6.5 | 91.55 |
| 24 | 600 | 610 | 5 | 84.96 | 8 | 135.26 |
| 28 | 700 | 711 | 6 | 118.8 | 9 | 177.45 |
| 32 | 800 | 813 | 6 | 135.99 | 10 | 225.53 |
| 36 | 900 | 914 | 8 | 203.57 | 11 | 278.98 |

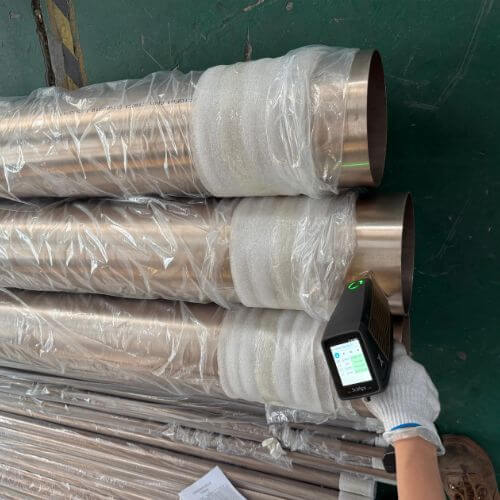

Order for copper nickel tubes with a diameter of 219 mm and 89 mm for shipbuilding in China. The standard is DIN86019 pipes we have in stock and now the workers are lifting them out ready for shipment. Before delivery, we have to check the chemical composition and size to make sure they are qualified.
Order from Dubai for copper nickel tubes with an outside diameter of 57 and 76 mm in accordance with DIN 86019. The copper nickel tubes have been marked on the surface in accordance with the customer’s requirements. Now it has been packed in wooden crates and ready for shipment.

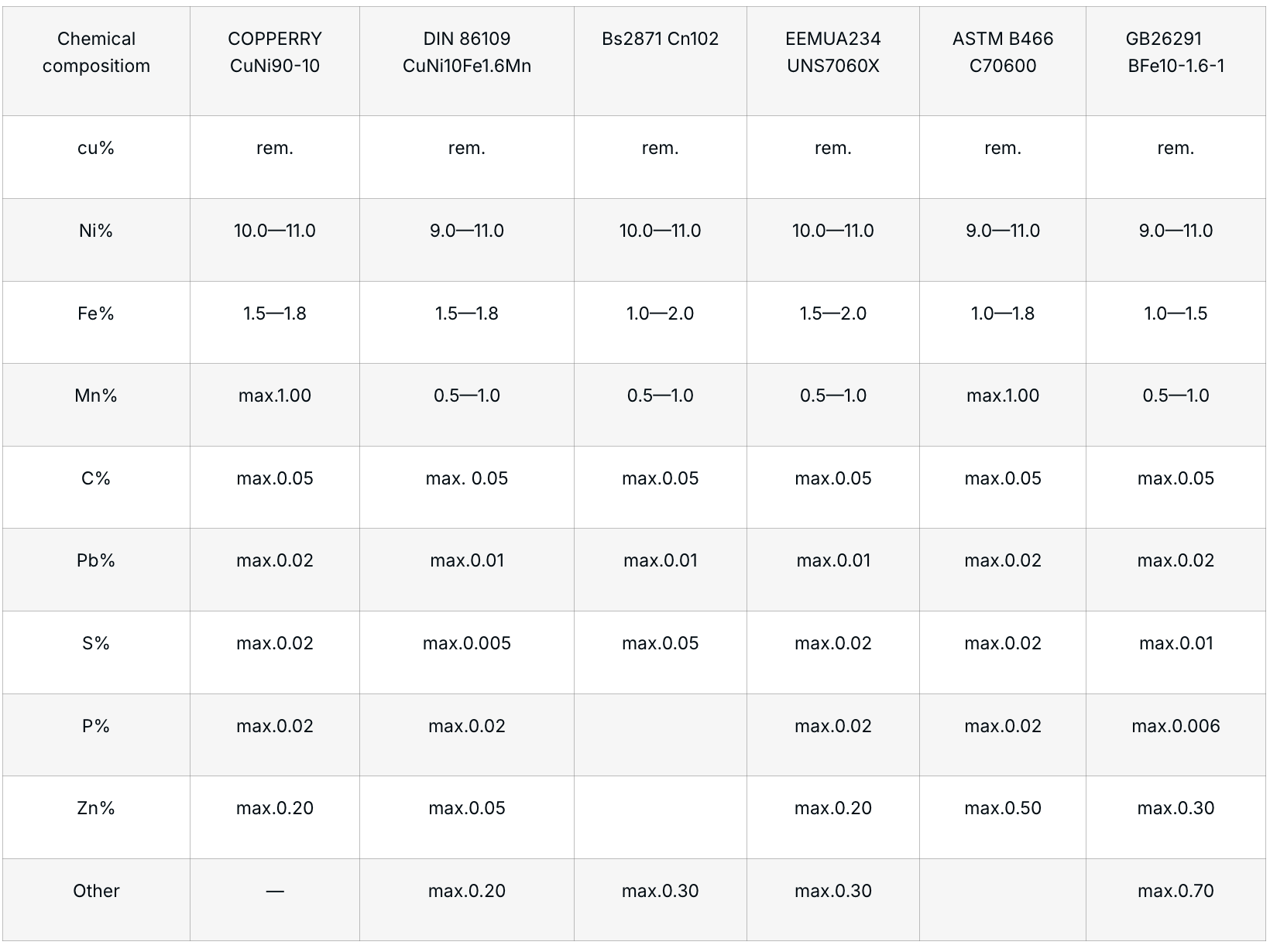

Chemical compositiom | COPPERRY CuNi90-10 | DIN 86109 CuNi10Fe1.6Mn | Bs2871 Cn102 | EEMUA234 UNS7060X | ASTM B466 C70600 | GB26291 BFe10-1.6-1 |
cu% | rem. | rem. | rem. | rem. | rem. | rem. |
Ni% | 10.0—11.0 | 9.0—11.0 | 10.0—11.0 | 10.0—11.0 | 9.0—11.0 | 9.0—11.0 |
Fe% | 1.5—1.8 | 1.5—1.8 | 1.0—2.0 | 1.5—2.0 | 1.0—1.8 | 1.0—1.5 |
Mn% | max.1.00 | 0.5—1.0 | 0.5—1.0 | 0.5—1.0 | max.1.00 | 0.5—1.0 |
C% | max.0.05 | max. 0.05 | max.0.05 | max.0.05 | max.0.05 | max.0.05 |
Pb% | max.0.02 | max.0.01 | max.0.01 | max.0.01 | max.0.02 | max.0.02 |
S% | max.0.02 | max.0.005 | max.0.05 | max.0.02 | max.0.02 | max.0.01 |
P% | max.0.02 | max.0.02 |
| max.0.02 | max.0.02 | max.0.006 |
Zn% | max.0.20 | max.0.05 |
| max.0.20 | max.0.50 | max.0.30 |
Other | — | max.0.20 | max.0.30 | max.0.30 |
| max.0.70 |
DIN 86019 The maximum size of the pipes is 419mm. More than 419mm copper nickel pipes is a welded , belongs to DIN 86018 standard.
DIN8019 pipes are used in sea pipes, shipyard,ship building,Navy, and Offshore Applications
The European standards for copper nickel pipes are DIN 86019 ， BS 2871 ， EN 12449，EEMUA234
DIN86019 pipes are 6 meters long each
The production cycle is 35 days.If you need din 86019 pipes urgently, we try our best to send it out fast from our stock.
